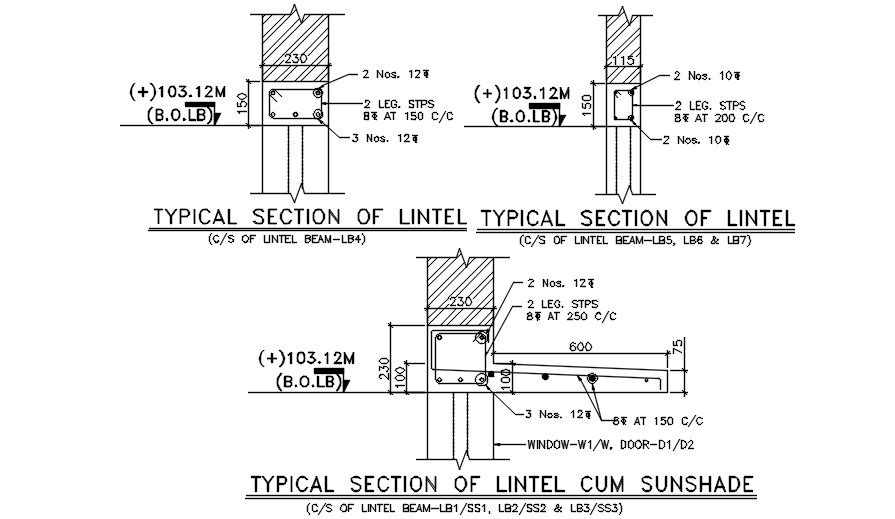

Lintel Beam Section CAD Drawing with Reinforcement and Dimensions

This AutoCAD drawing provides a detailed lintel section with precise beam dimensions, steel reinforcement layout, and material specifications. All measurements for width, height, and span of the lintel are clearly indicated, ensuring structural accuracy for construction projects. The reinforcement bars and their spacing are annotated to guide architects, engineers, and builders in maintaining structural integrity. This DWG file is ideal for civil engineers and interior designers working on residential, commercial, or institutional projects, allowing accurate planning and implementation of lintel beams. With sectional views and dimensional details, this CAD drawing ensures every element of the lintel, including steel bar placement, concrete thickness, and support alignment, is correctly interpreted for on-site construction. Perfect for use with AutoCAD, 3D Max, Revit, and SketchUp, this drawing enhances project precision and streamlines building workflows.
